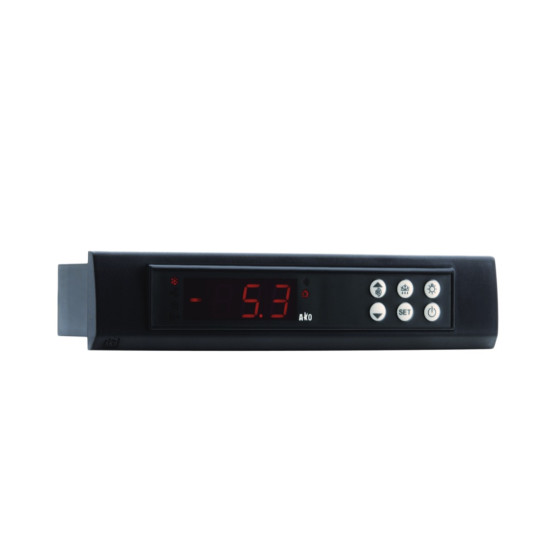

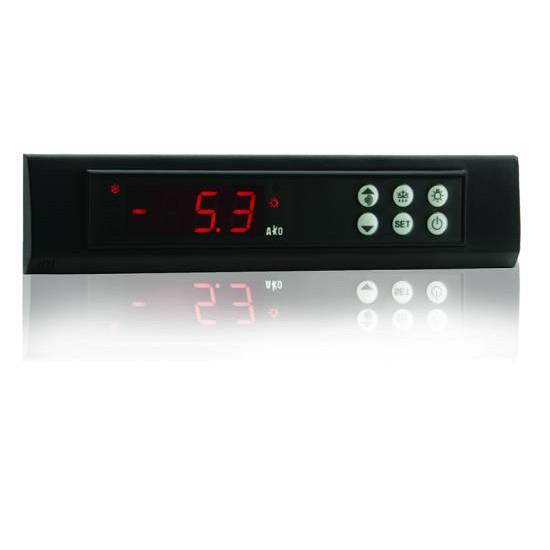

THERMOSTAT AKO -10323 -50°C to +99°C, Panel Mount 150x31 mm, 4 relays "AKO"

Thermostat -50°C to +99°C, Panel Mount 150x31 mm, 4 relays

Compressor and light relay
6 keys: Up, Down, Set, Escape, Light and ON/OFF. Pushbutton to turn the unit on and off and light switch. Defrost by compressor shutdown.
Continuous cycle is possible. Password enabled for entering programming,programme-selectable indication in ºC o ºF Digital input configurable for door contact, severe alarm, remote defrost, change in set-point temperature
Application: Industrial and commercial cold, displays, electric panels, etc.

Technical Specifications

•  Temperature range -50 ºC to +99 ºC
•  3 digits display (ºC/ºF)
•  Resolution 0,1 ºC
•  Accuracy ±1 ºC
•  NTC probe
•  Panel cut-out dimensions 150 x 31 mm
•  Box dimensions 149 x 30 x 57,7 mm
•  Frame 179,9 x 37,9 mm
•  Compressor relay AC1=12 A, AC3=9 A
•  Fan Relay AC1=8 A, AC3=4 A
•  Defrost Relay AC1=8 A, AC3=4 A
•  Light relay AC1=8 A, AC3=4 A
•  Power supply 230 V~ ±10%, 50/60 Hz
