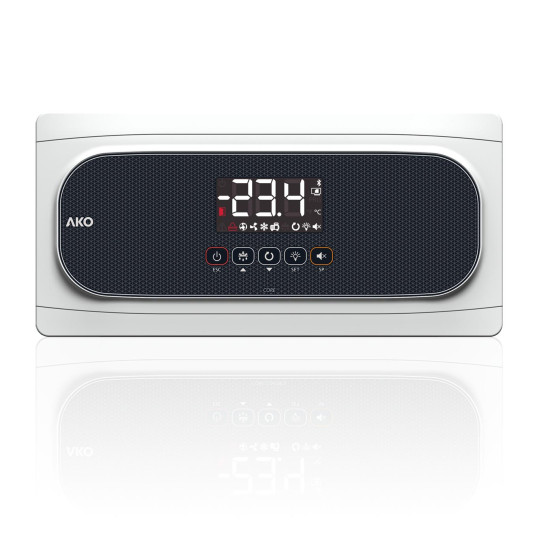

ADVANCED TEMPERATURE CONTROLLER FOR COLD ROOMS AKO-16525A

CONTROLLER FOR COLD ROOMS AKO-16525A

The AKO- 16525A advanced controller for cold room stores has a SELFDRIVE operating mode that automatically controls (without parametrisation) the fans and adaptively minimises defrosts to optimise the performance of the cold room store: maximising time in set point and minimising costs linked to energy consumption and wear of components.

In order to evaluate the performance of the refrigeration facility in detail, the CAMM (AKO-58500) module and the applications for the AKO CAMM Tool and AKO CAMM Fit mobile devices (available in App Store and in Google Play) are included with the AKO-16524A controller . These applications provide several indicators on the actual operation of the cold room that allow diagnosing possible design, usage or maintenance problems in the installation.

ADVANCED CONTROL

AKOCORE ADVANCE regulates the installation using its SELF-DRIVE© algorithm that allows:

• Reduction in power consumption of the service by up to 35%

• Improve product state of preservation

• Reduce maintenance costs


APPLICATIONS

• Positive and negative cold room stores

• Management of defrosts via air, electric or hot gas

• Valid as integral panel (condensing unit and evaporator management), or service panel (solenoid and evaporator management)


AKOCORE ADVANCE regulates the installation using its SELF-DRIVE© algorithm and uses just 2 probes:

ADVANCED TEMPERATURE

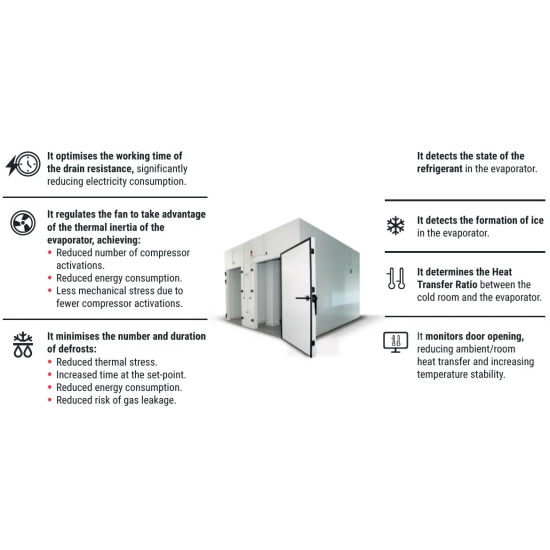

MAIN BENEFITS

• Prevents evaporators from blocking
• Commissioning using only two parameters
• Maximum flexibility thanks to its 5 voltage-free relays
• Door control and drainage resistor
• Self-diagnosis and preventive maintenance
• Independent defrost, up to two evaporators
• Defrost via air, resistors and hot gas
