Η φωτογραφία ενδέχεται να είναι ενδεικτική – Καλέστε μας για επιβεβαίωση.

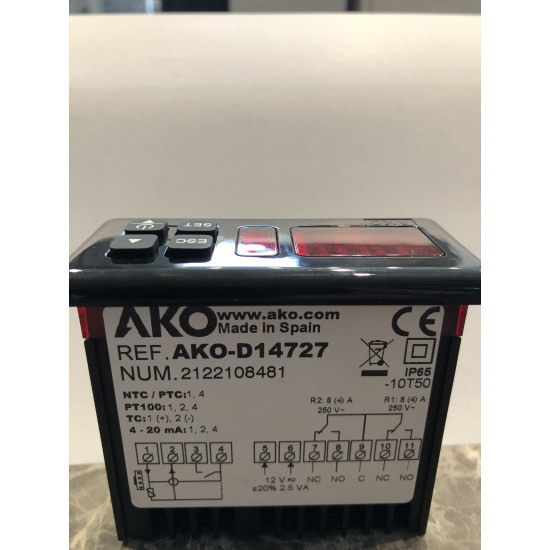

Temperature controller Range from -50.0ºC to +600ºC, 2 relays, panel mounting
Pt100 probe input.
Programmable for cold and heat. With the 2 relay outputs, the controller can be used to work as 2 independent stages or neutral zone
Application: Ovens, electrical panels, industrial installations, etc.
Specifications
- Temperature range -50ºC to +600ºC
- Display 3 Digits (ºC/ºF)
- Resolution 1ºC
- Accuracy ±0.5 ºC
- Probe type Pt100
- Panel cut-out dimensions 70.5 x 28.5 mm
- Front part dimensions 75.8 x 33.8 mm
- Depth 61 mm
- Control relays 2 SPDT 8A, 250V, cosj= 1
- Power supply 12V_~ ±15%, 50/60Hz
Temperature controller ΑΚΟ-14721 Range from -50.0ºC to +600ºC, 2 relays, panel mounting "AKO"
Login to see prices
You need to be logged in to see the prices. Log in here!
2102280384 - 2102286268
- Stock: In Stock
- Model: 25.01.317
- Weight: 250.00g
- Dimensions: 10.00cm x 7.00cm x 7.00cm
