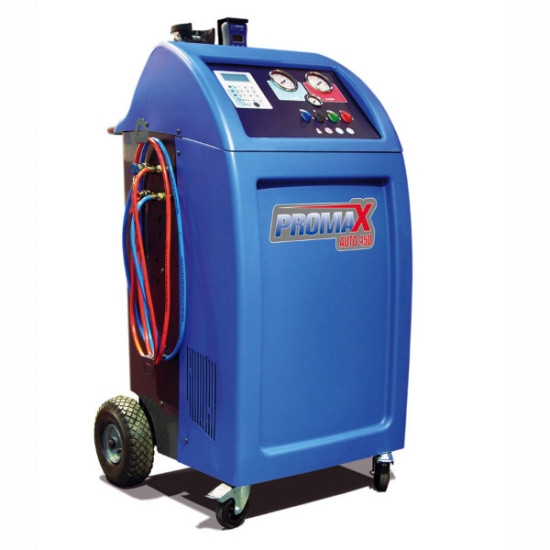

Recovery / recycling AC Station, AUTO 450, R134a, pro service station, PROMAX

Technical specification

AC450PRO

Flushing unit

Kit optional

Electronic database (2006)

Optional

AC diagnostic kit

Optional

User database

250 vehicles

Database update

Smart cartridge

Max operating pressure

16bar

Operating temperature

10 – 50°C

Power supply

230V 50Hz

Dimensions in cm

128 x 69 x 69

Weight

100 kg

Quality & Conformity

Conformity CE / PED

Main functions

Manual operating mode

Yes

Automatic operating mode

Yes (only charge)

Vacuum phase programmable

Yes

Automatic AC system leak test

Oil discharge

Manual

Oil injection

Manual - Visual control

UV dye injection

Manual

Automatic refrigerant charging

Yes

Service hoses compensation

Charge

Automatic non condensable discharge

Yes

Patent recycle multi-pass during vacuum

Yes

Technical features

Manometers

63 mm class 1,6

Tank manometer

63 mm

LCD backlit display 80 characters

Yes

Printer

Optional

Hermetic compressor high performance

1/4 HP 300 grs / min

Super-cooled condenser

Yes

Vacuum pump Dual stage

180 L/min

Large capacity refrigerant tank

10 Kg

Scale accuracy

+/- 5 gr

Filter dryer high performance

710cc SAE J 2099
