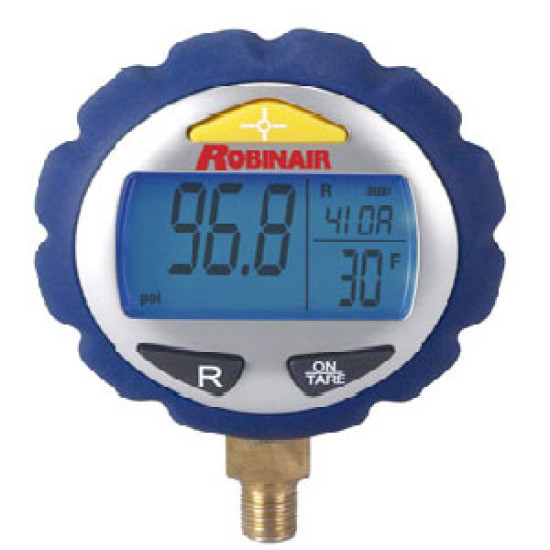

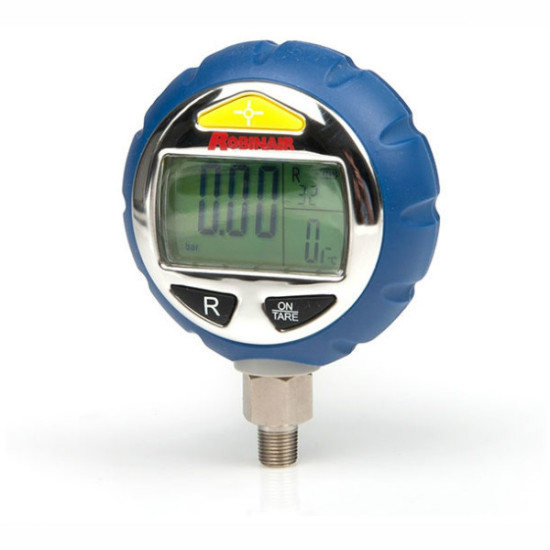

Name: Digital Gauge RA 11910-E
Brand: Robinair (Usa)
Price: 206.35 EUR
Availability: OutOfStock

Discount Coupon

Please sign up here Sign here and get -10% discount coupon for purchases over 250 € through our online store.
through our online store.

*excludes special the site offers and products chalkou.I discount is not added to any other discount or offer.
* Coupon Validity: 30 days of activating your account.

Digital Gauge RA 11910-E

Η φωτογραφία ενδέχεται να είναι ενδεικτική – Καλέστε μας για επιβεβαίωση.

Description
Specifications

Digital Gauge

Features

Displays pressure and temperature charts for 24 refrigerants: R12, R22, R123, R124, R134a, R401A, R401B, R402A, R402B, R404A, R407C, R409A, R410A, R417A, R422A, R422D, R427A, R502, R507, R1234yf, R32, R290, R600 and R600a
Backlit LCD, for easy reading in all conditions
Simple two button operation
Self powered by “AAA” batteries
Low Side gauge displays vacuum
4 user selectable pressure scales – Bar, PSI, kg/cm2 and MPa
Temperature can be displayed in degrees Celsius or Fahrenheit
Auto Shut Off Feature
High Accuracy
Overpressure protected to 150 % of range; pressure overload indication
Multi panel displays; 4 digit LCD for pressure, 3 digits for temperature
Units supplied with standard 1/8" NPT fitting for mounting to any manifold or panel application
Low Battery Indication
Tare function to zero the gauge at any pressure
High Impact ABS housing and protective rubber boot

Temperature
Temperature resolution	1 °C / 1 °F
Voltage
Battery Life	Approximately 140 hours
Τροφοδοσία	3 x 1.5 V AAA alkaline batteries replaceable
General
Accuracy	±1 % full pressure for 0 to 34.47 bar (0-500 psi) range ±2.5 % full pressure for 34.47 bar to 55.15 bar (500-800 psi) range
Technical
Burst Pressure	5 times nominal pressure range
Connection	1/8" - 27 NPT Male Fitting
Operating Range	0 to 55.15 bar / 0 to 800 psi / 0 to 56.25 kg/cm2 / 0 to 5.515 MPa
Overpressure	150 % of the range overpressure is 87.72 bar
Pressure Measurement Units	Vacuum is in Hg / mmHg / MPa
Pressure Resolution	0.05 bar / 0.5 Psi / 0.05 kg/cm2 / 0.005 MPa / 0.1 inHg / 0.5 mmHg
Temperature Measurement Units	°C / °F
Memory
Display	Display type: Positive LCD with BLUE backlight
Display Size	50 x 30 mm

Digital Gauge RA 11910-E

Login to see prices

You need to be logged in to see the prices. Log in here!

2102280384 - 2102286268

Stock:
Model: 50.07.086

Robinair (Usa)

Products Sold: 1

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Request more info

Due to the large number of products, please consult the last modified date value (located under the product price) for the validity of the price of each product. By placing your order we will call you to confirm availability and price of products you have ordered.
