CONDENSATE PUMP ''Compact'', for Boiler, ASPEN

Designed to remove the heat! Super fast & easy installation.

The "Compact" burner pump is ideal for installing under domestic gas boilers and furnaces.
A high efficiency boiler recycles and absorbs heat from the flue gas leaving a large amount of acidic condensate. ASPEN's high efficiency pumps remove all this amount of acidic water quickly and safely.

The new Compact boiler pump is designed to collect condensation and discharge up to 15m. Compact design for ease of installation. Using internal float switches the pump automatically removes the collected condensate. The pump can be installed free-standing or wall mounted with bracket supplied. It is well suited for a range of consumer and OEM requirements.
Technical specifications

Inlet up to 32mm
Tank capacity: 0.24L
Suitable for condense as low as pH 2.7
Extremely quiet operation
Inline valve to prevent siphoning back
High level safety cut-out
Wall or floor mounted
Hi-lift capacity
Fire retardant plastics
Pipe adaptor for discharge hose
Inlet seal fits most standard overflow pipe sizes
Outlet size: 6mm
Maximum water temperature: 60°C
6m x 6mm pvc discharge hose
Includes fixings
Performance

Water flow rate: 34 ltrs max./hr
Discharge head: 15m max.
35dB(A) at 1m
Weight: 0.57kg
Power Supply

230V AC 16W, 1PH 50/60 Hz
3A alarm wires, normally closed
Double insulated

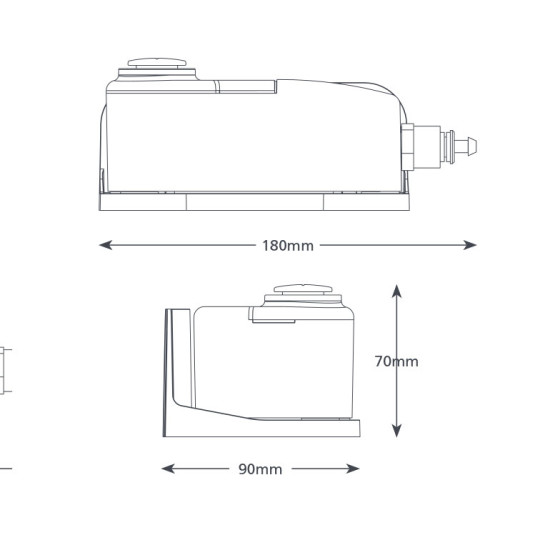

Dimensions (inc. Bracket)

70mm (H) x 180mm (L) x 90mm (W)
