MACON_HP/HPB for CHILLER/HEAT PUMP

MACON_HP/HPB for CHILLER/HEAT PUMP

• Control device CHILLER / heat pump for 1 or 2 circuits with 2 or 4 compressors, with analog outputs 0-10 Volt in compressors and fans

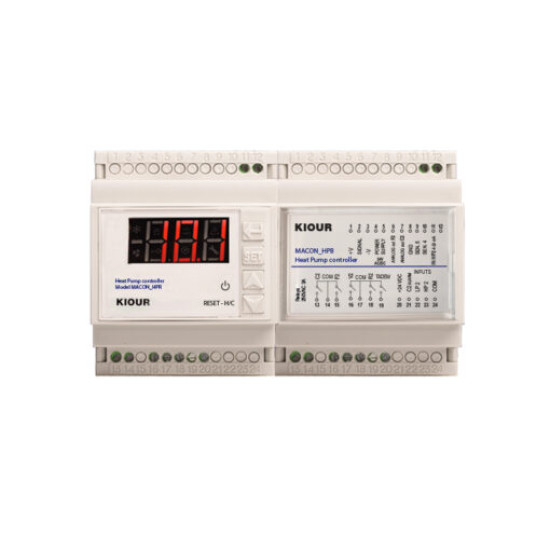

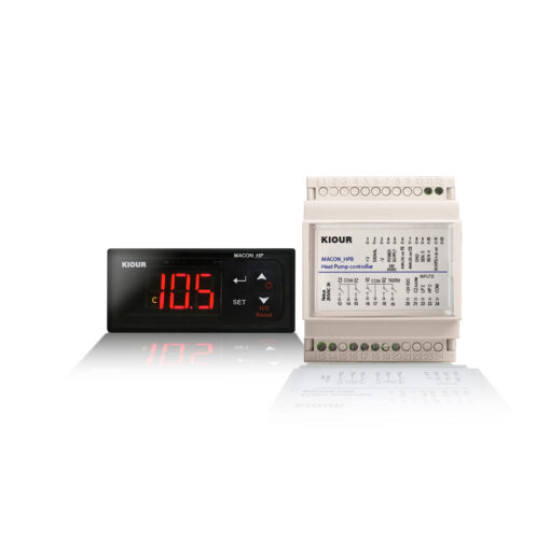

• Model MACON_HP (panel), MACON_HPR (rail) (1st circuit)
• Μodel MACON_HPB (rail), (2nd circuit)
• Frost monitoring where the device is OFF while the pump is ON
• 5 PTC temperature sensors range -50 ÷ 99.9ºC, where the 3 sensors are for the first circuit, input / output water and de-Frost control and the 2 for the second circuit, water output and deFrost control
• Decimal temperature display / Accuracy 0.5ºC
• 9 digital inputs, 6 for the first circuit and 3 for the second
• 7 relay outputs 250VAC 5A/3A Resistive Load in MACON_HP
• 5 relay outputs 250VAC 5A Resistive Load in MACON_HPΒ
• 4 analog output 0-10 Volt, 2 in each circuit for compressors (C1/C2) and fans (FAN1/FAN2) respectively
• Cooling – heating function / Defrost function
• ON/OFF device button
• Alarm high – low pressure in refrigeration circuits
• Maximum consumption for each device 10Watt
• MACON_HP is mounted on a panel / Dimensions 28x70x75mm
• MACON_HPΒ is mounted on a Ω rail / Dimensions 70x90x65mm

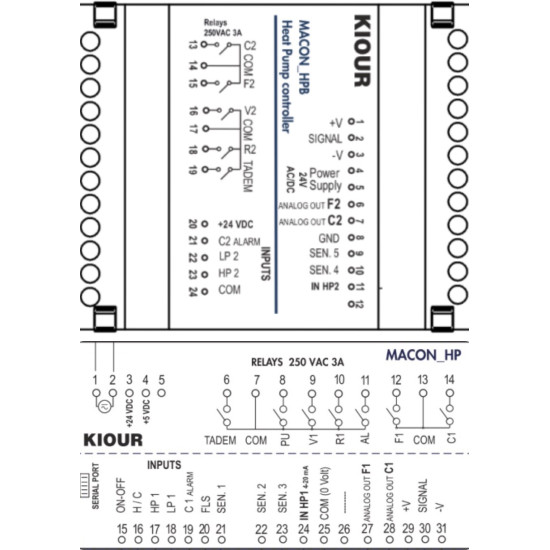

• Connection with terminal blocks 28-16 AWG 1.5mm2
• Power supply 24VAC/DC ± 10% 50/60Hz 5W
• Storage temperature -20 ÷ +80ºC
