ANTIVIBRATION ACR -Metal, BLUE COMPLEX "ACRTOOLS"

Η φωτογραφία ενδέχεται να είναι ενδεικτική – Καλέστε μας για επιβεβαίωση.

Description

Antivibration Elastic Pad with Metal Cover

ANTIVIBRATION MACHINERY SUPPORT
EASY TO INSTALL
MACHINERY FIXING CAPABILITY

APPLICATIONS

ANTIVIBRATION SUPPORTS: Air-compressors - Cutting machines - Printing machines - Fans - Air conditioner units etc.

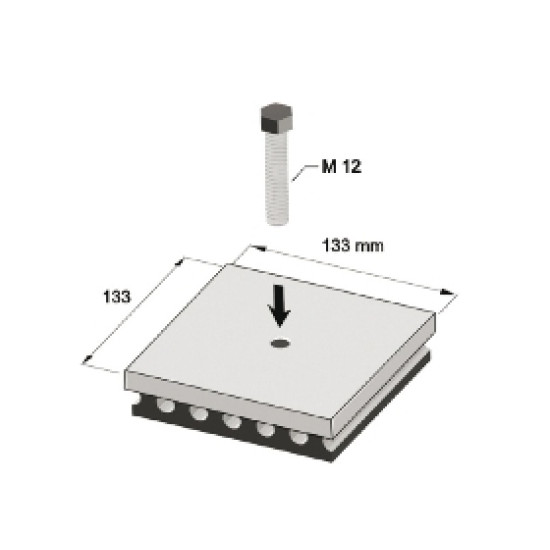

DIMENSIONS

Elastic Element dimensions: 12.5x12.5x2.5 cm
Total height: 2.8 cm
Internal thread: M12

DESCRIPTION

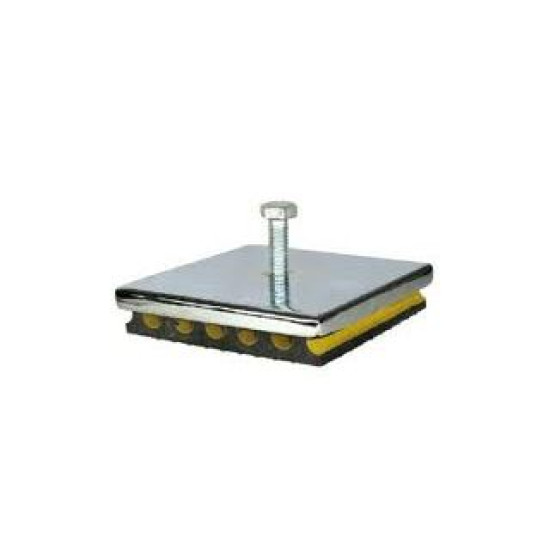

ACR-EP Metal consists of an elastic element (dimensions 12.5x12.5 cm) and a specially formed galvanised metal cover. The intercession of the steel covers between the base of the machine and the elastic, this ensures that the equable distribution of the load to the entire surface of the elastic element. At the same time the cover protects the rubber from the solar radiation. At the centre of the upper side of the cover an internal M12 thread is incorporated, which accepts the corresponding fixing screw (not included). The beige, green and yellow elastic pads are made of Neoprene type of rubber.

ACR-EP Metal	MAXIMUM LOAD (kp*)
Blue or Green	100 - 250

*1kp = 10N

The Dynamic Characteristics are identical to ACR-EP

ANTIVIBRATION ACR -Metal, BLUE COMPLEX "ACRTOOLS"

Login to see prices

You need to be logged in to see the prices. Log in here!

2102280384 - 2102286268

Stock: 2-3 Days
Model: 10.20.035
Dimensions: 6.00cm x 6.00cm x 2.50cm
